Name: High Compatibility Carbon Steel Ts115 Series Weld Probe
Brand: TMTeck Instrument Co., Ltd
SKU: TS115
Availability: InStock

Gedetailleerde informatie

Type:	Phased Array-sonde	Element:	32
Elementvorm:	Voering	Applicatie:	Brede diktemeting
Kleur:	splinter
Markeren:	carbon steel weld probe , Ts115 ultrasonic transducer , high compatibility weld probe

Productomschrijving

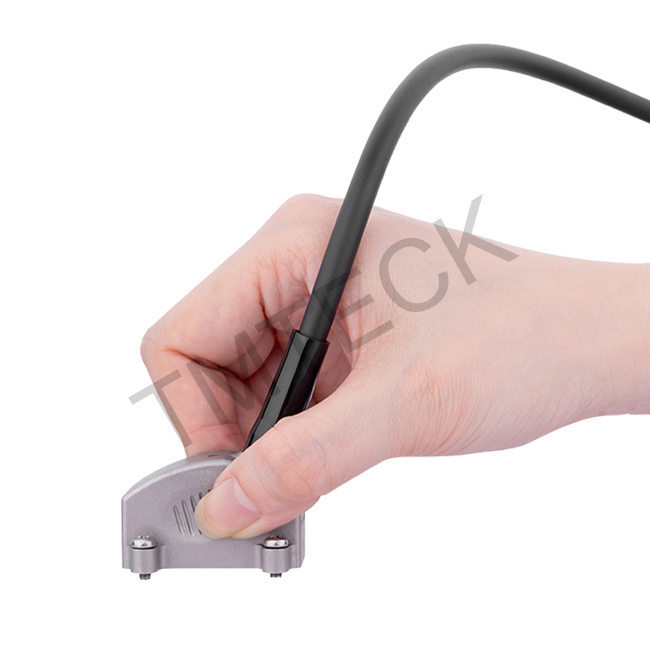

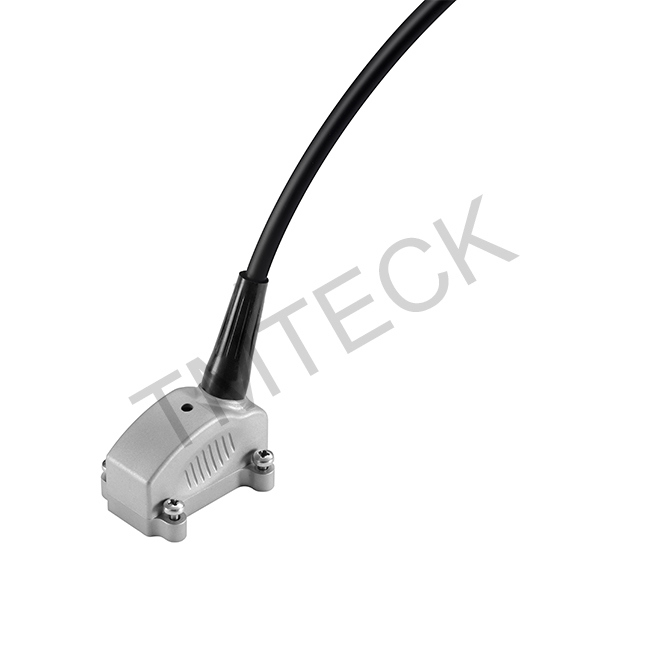

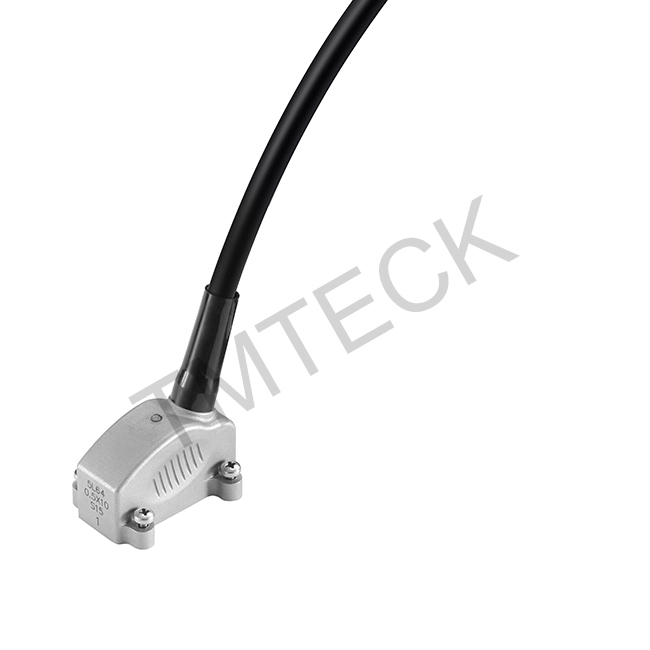

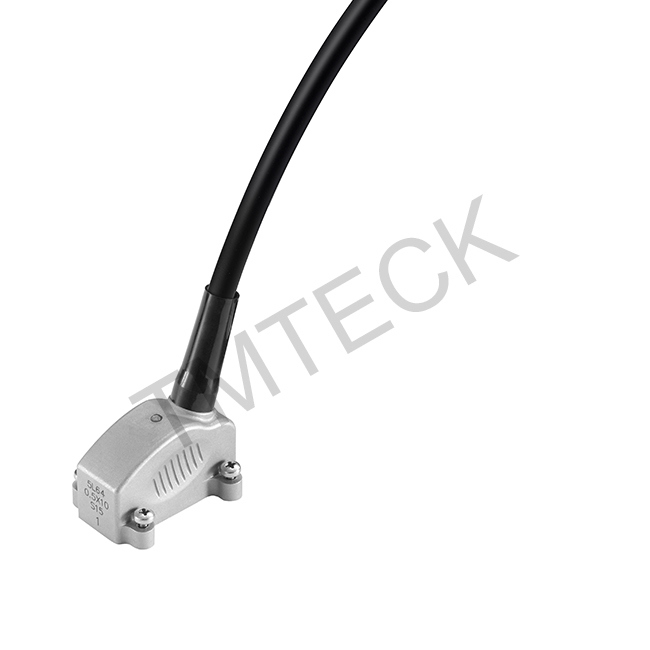

High Compatibility Carbon Steel Ts115 Series Weld Probe 0

Carbon Steel Weld Probe: Specific

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.carbon steel weld series:

3.Thick weld inspection from 3 mm to 60 mm

4.Manual or automatic detection

5.Wide thickness measurement

6.Excellent signal to noise ratio

7.Moderate constitution and large monitoring range

Applications

1.Thick plate material and weld

2.Forgings, noise or granular materials

3.Moderate constitution and large monitoring range

Specification

Probe Series	Model	Element Shape	Freq (MHz)	E-Nos	Pitch (mm)	Active Aperture (mm)	Elev.(mm)	Size (LxWxH)
TS115	2.25L32-1.0x10	Linear	2.25	32	1.00	32.0	10.0	LxWxH:40x28x25 (mm) LxWxH:1.57x1.1x0.98 (in)
	2.25L64-0.5x10	Linear	2.25	64	0.50	32.0	10.0
	5L32-1.0x10	Linear	5	32	1.00	32.0	10.0
	5L64-0.5x10	Linear	5	64	0.50	32.0	10.0
	7.5L32-1.0x10	Linear	7.5	32	1.00	32.0	10.0
	10L64-0.5x10	Linear	10	64	0.50	32.0	10.0

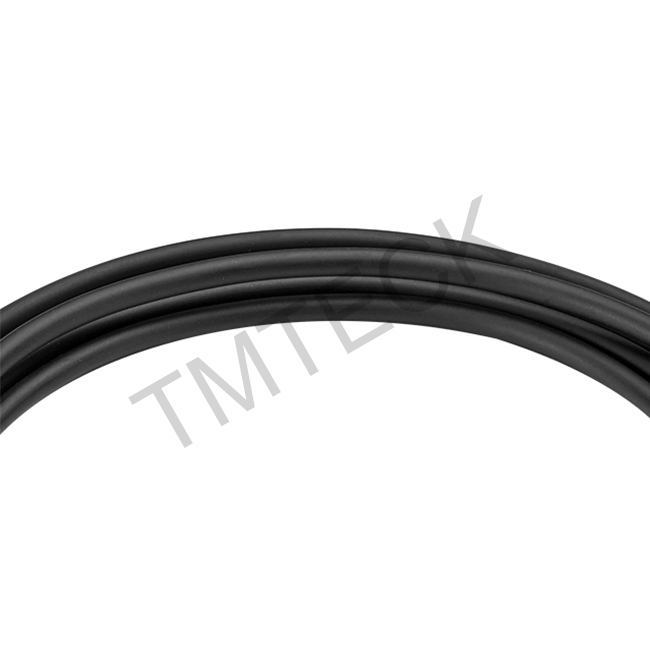

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Probe Series	Model	Compatible Model	Element Shape	Size(LxWxH)
TS115	N0L	0°LW	40°~70°	LxWxH: 40x28x25 (mm) LxWxH : 1.57x1.1x0.98 (in)
	N60L	60°LW	40°~70°
	N55S	55°SW	40°~70°
	N55S-IHC	55°SW	40°~70°
	N55S-AOD500	55°SW	40°~70°
	N55S-IHC-AOD500	55°SW	40°~70°

Quick Details

Place of Origin:Shanghai, China

Element:32

Element Shape:linear

Size:LxWxH 40x28x25(mm)1.57x1.1x0.98(in)

Warranty:12 Months

Case:Stainless steel

Application:Wide thickness measurement

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1

label:

Plaats van herkomst:	China
Merknaam:	TMTeck
Modelnummer:	TS115

Min. bestelaantal:	1
Prijs:	Bespreekbaar
Verpakking Details:	karton
Levertijd:	4-6 werkdagen
Betalingscondities:	T/T, Western Union, PayPal
Levering vermogen:	100pcs/één week
