Gedetailleerde informatie

Modelnummer::	7,5L64-0,6x10-TS8/7,5L64-38,4x10-A12	Element:	32
Elementvorm:	Concaaf	Maat:	R25,LxBxH 43x14x43(mm)1,69x0,55x1,69(inch
Geval:	Roestvrij staal

Productomschrijving

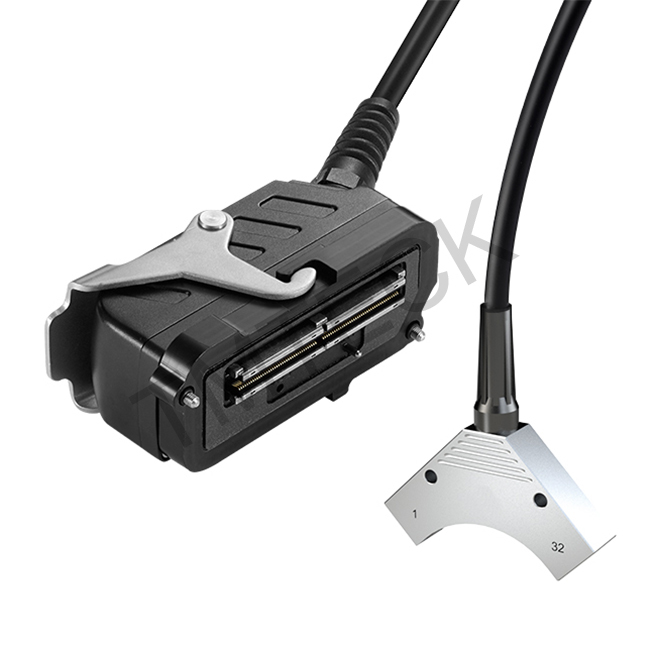

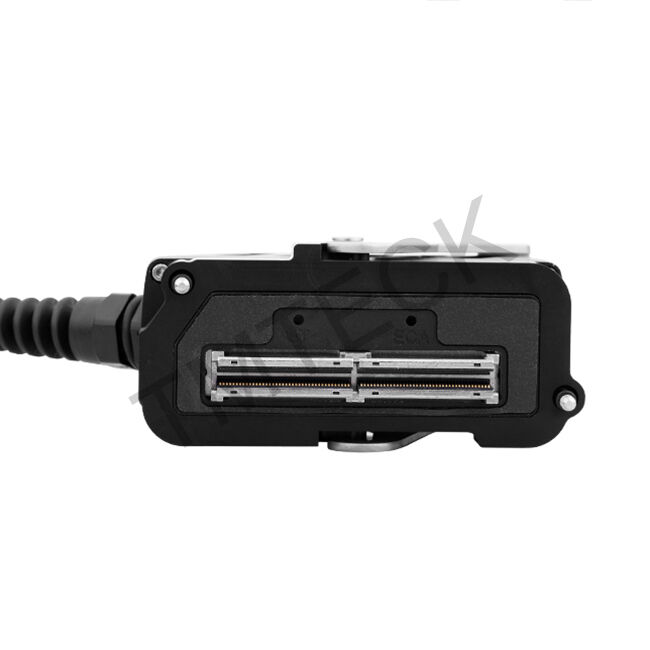

TS29 R4 Concave Probe 0

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

Probe Series	Model	Compatible Model	Element Shape	Freq (MHz)	E-Nos	Pitch (mm)	Active Aperture (mm)	Elev. (mm)	Size(LxWxH)
TS29/R4	2.25C32-1.35x8	2.25C32-43.2x8	Concave	2.25	32	1.35	43.2	8.0	43x14x43 (mm) 1.69x0.55x1.69 (in)
	3.5C32-1.35x8	3.5C32-43.2x8	Concave	3.5	32	1.35	43.2	8.0
	5C32-1.35x8	5C32-43.2x8	Concave	5	32	1.35	43.2	8.0
	10C32-1.35x8	10C32-43.2x8	Concave	5	32	1.35	43.2	8.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5C32-1.35x8-TS29/5C32-43.2x8-R4

Element:32

Element Shape:Concave

Size:R25,LxWxH 43x14x43(mm)1.69x0.55x1.69(in

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1

label:

Plaats van herkomst:	China
Merknaam:	TMTeck
Modelnummer:	TS29R4

Min. bestelaantal:	1
Prijs:	Bespreekbaar
Verpakking Details:	karton
Levertijd:	25 werkdagen
Betalingscondities:	T/T, Western Union, PayPal
Levering vermogen:	100 stks/een week
